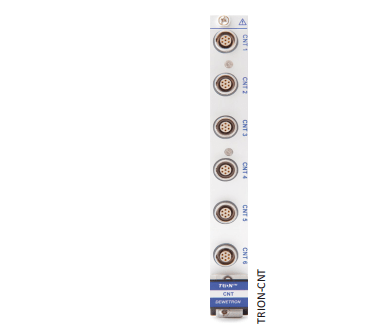

隔離的高級計數器模塊
80MHz時基
每個通道2MS /s采樣
事件，波形定時和傳感器模式
可編程閾值和AC/DC耦合
| TRION-CNT 技術指標 | ||
| 輸入通道 | 6 advanced counter or 18 digital inputs (TRION-CNT-6-L1B) | |
計數器模式 - Waveform timing - Sensor modes - Event counting | Period, frequency, pulse width duty cycle and edge separation Encoder (angle and linear) Basic event counting,gated counting, up/down counting and encoder mode (X1,X2 and X4) | |
| 對地電壓 EN 61010-2-30 | 33 Vaws,70Vc,46,7 VPEAK | |
| 兼容性 | Adjustable trigger levels | |
| 絕緣電壓 (通道間及通道對機箱) | 500 Vc | |
| 輸入耦合 | DC and AC(1Hz) ACfor input A only | |
| 輸入阻抗(ground referenced) | 1MQ/5pF | |
| 采樣率 | 2 MS/s per channel | |
| 帶寬(-3dB) | 5 MHz | |
| 觸發可調范圍 | 0 to 50 V | |
| 觸發分辨率 | 12 mV | |
| 觸發等級精度 | ±20 mV±1% of threshold/retrigger level | |
| 過壓保護 |  ±100 V | |
| 最大DC電壓 @AC coupling | ±50VDC | |
| 計數器分辨率 | 32-bit | |
| 計數器時基 | 80 MHz | |
| 時基精度 | Within DEWE2 system | Typ.10 ppm; max. 50 ppm |
| Within DEWE3 system | Typ.2 ppm; max. 10 ppm | |
| 最大輸入頻率 | 10 MHz | |
| 傳感器供電 | 5V(600 mA)and 12V(600 mA),not isolated | |
| 功耗 | 5 W | |
| 重量 | Approx. 240 g | |
